DSP24 Value connector layout

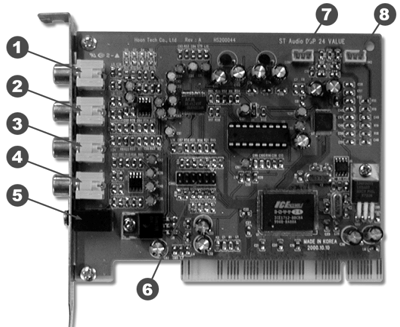

This text describes the connectors of the DSP24 Value PCI-card. The following photo shows the PCI-card:
| 1 - | Analog Input 1 (RCA) - routed to the left channel of the MME device ADSP24 Ext. (1) Input 1/2 and channel 1 of the ASIO driver | |
| 2 - | Analog Input 2 (RCA) - routed to the right channel of the MME device ADSP24 Ext. (1) Input 1/2 and channel 2 of the ASIO driver | |
| 3 - | Analog Output 1 (RCA) - sends the left channel of the signal that was selected in the lower left corner of the Output Mixer software (this is the main output of the card) | |
| 4 - | Analog Output 2 (RCA) - sends the right channel of the signal that was selected in the lower left corner of the Output Mixer software (this is the main output of the card) | |
| 5 - | Systemsound / Line Out - 1/8" stereo jack - sends out the output signal of the Internal Mixer [1] | |
| 6 - | 11 pin connector for optional DSP24 Value Bracket (described below) | |
| 7 - | CD In - can be connected to the analog output from CD-ROM (routed to the Internal Mixer [1]) | |
| 8 - | Aux In - can be connected to the analog output from a TV-card or another analog source (routed to the Internal Mixer [1]) |
Here is description of the connectors on the (optional) Digital I/O bracket:
| 1 + 2 - | MIDI In/Out connectors (using the included 1/8" to female DIN adapter cables) | |
| 3 + 5 - | optical S/PDIF in/ out connectors | |
| 4 + 6 - | coaxial S/PDIF in/out connectors | |
| 7 - | CD In - can be connected to the digital output from CD-ROM (disabled when the S/PDIF input is active and vice-versa) | |
| 8 - | 11 pin connector to connect the main DSP24 Value card |
 |
